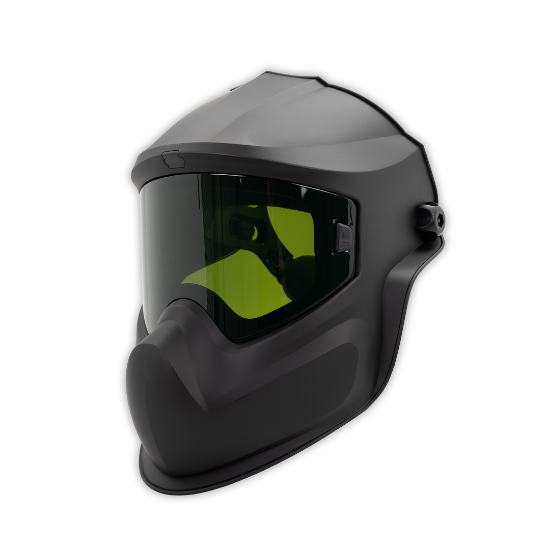

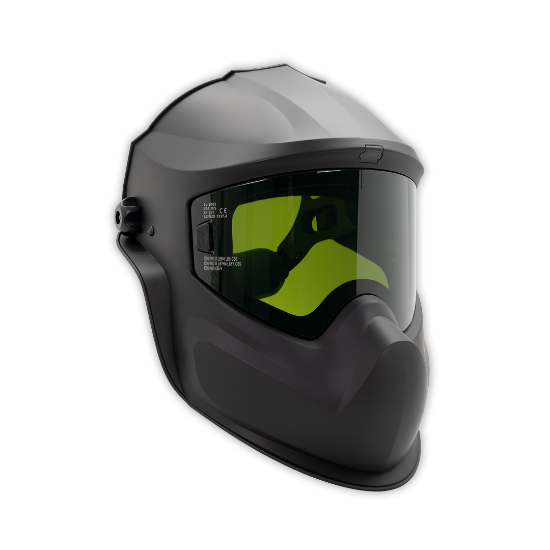

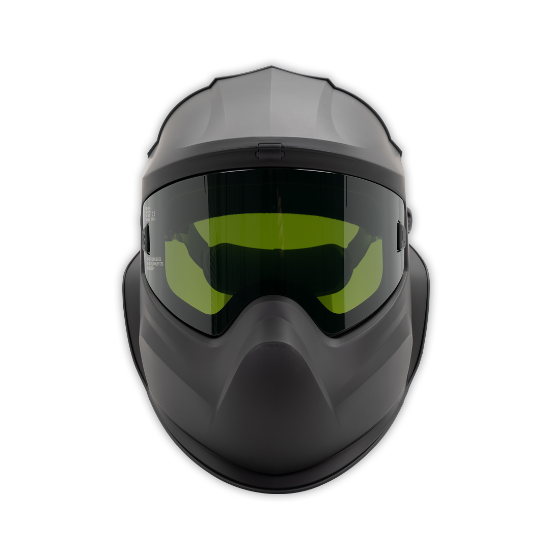

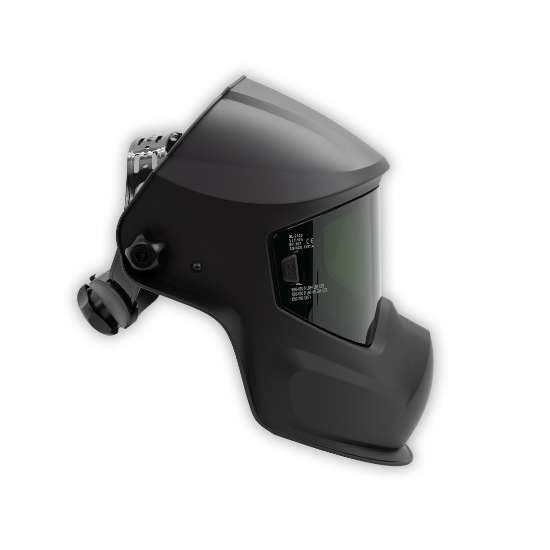

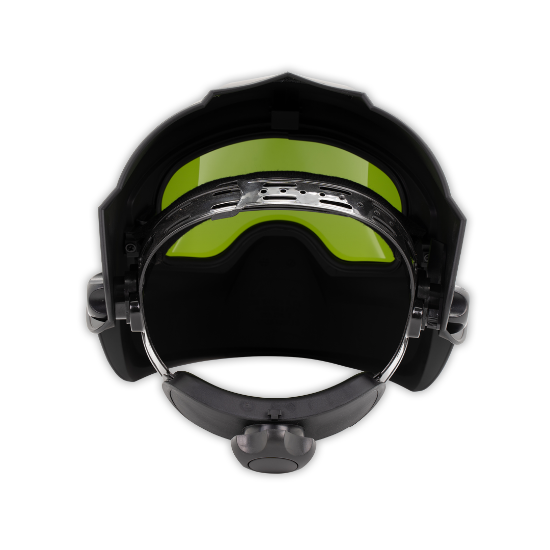

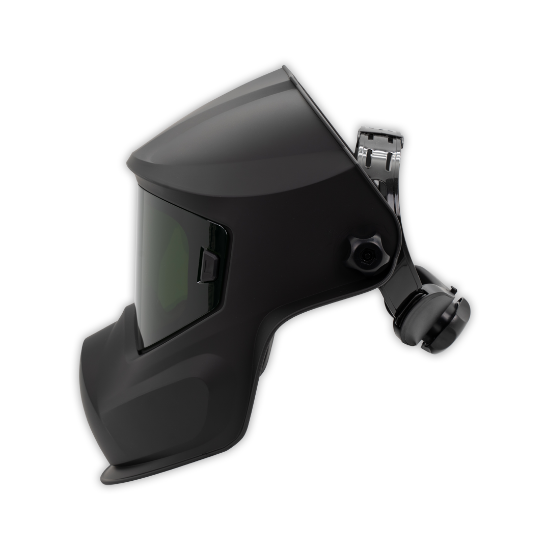

SLR1100

Laser Welding Helmet

The STRATA SLR1100 laser welding helmet is specifically designed to protect against the scattered and diffused light generated during laser welding processes performed with hand-held laser systems, and protects from the near-infrared spectrum emissions.

  • Designed for hand-held laser welding systems
  • Large panoramic viewing area
  • Extended protection for both eyes and face
  • Shell entirely made in a special nylon compound, able to resist against reflected / diffused laser radiation
  • Laser protective filter with wide absorption range and OD6+ protection
  • Tearoff adhesive disposable protective lenses to protect main lens from weld spatter and abrasions
  • Weight 700g for maximum comfort during long-term use
  • Regulation system to adjust helmet height and inclination. Fully adjustable premium comfort headgear
Right Paddle

Features

Product Overview

The STRATA SLR1100 laser welding helmet is specifically designed to protect against the scattered and diffused light generated during laser welding processes performed with hand-held laser systems, and protects from the near-infrared spectrum emissions.

  • Designed for hand-held laser welding systems
  • Large panoramic viewing area
  • Extended protection for both eyes and face
  • Shell entirely made in a special nylon compound, able to resist against reflected / diffused laser radiation
  • Laser protective filter with wide absorption range and OD6+ protection
  • Tearoff adhesive disposable protective lenses to protect main lens from weld spatter and abrasions
  • Weight 700g for maximum comfort during long-term use
  • Regulation system to adjust helmet height and inclination. Fully adjustable premium comfort headgear
See More

Overview

Technical Specifications

Attribute nameAttribute value
Red Light (635mm) Transmittance11%
Strata Helmet
Helmet ShellSpecial Nylon
FilterSpecial Polycarbonate Compound
Filter Dimension193 x 120 x 2.4mm
Shade Number#W3.0
Visible Light Transmission10% (W3.0)
Filter Light Peak Wavelength VLT530nm 32%
Wavelength 900-1000MMOD6+
Wavelength 1000-1100MMOD7+
Operating Temperature-10°C to 54°C
Storing Temperature-20°C to 85°C
Viewing Size171 x 117.6mm
Warranty12 Months
