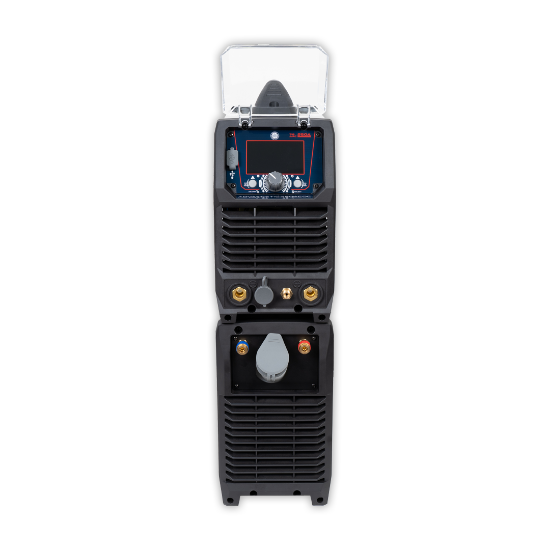

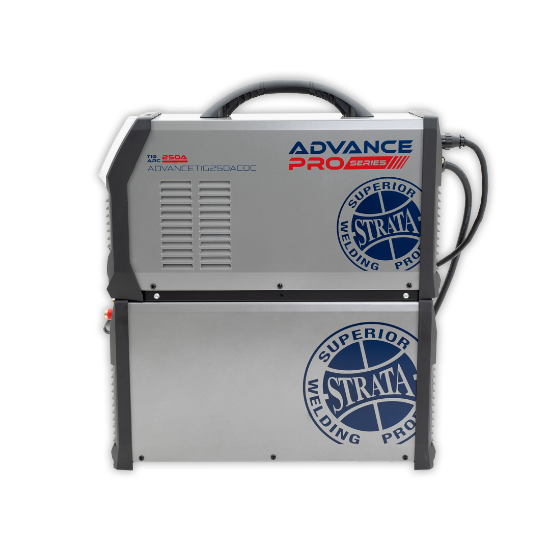

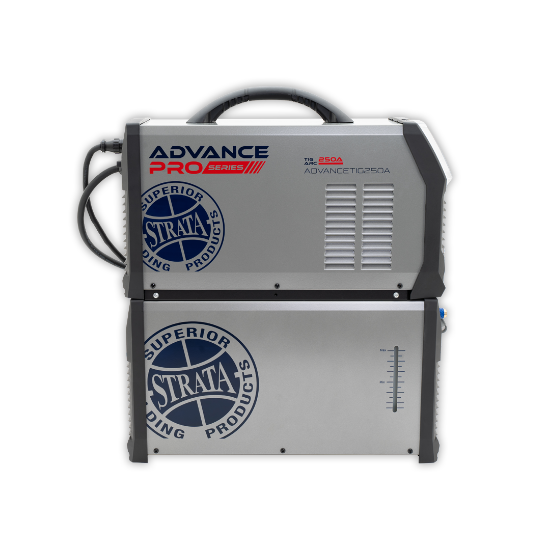

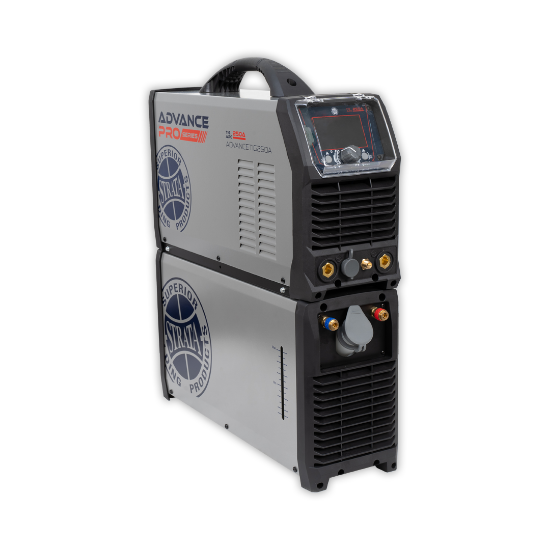

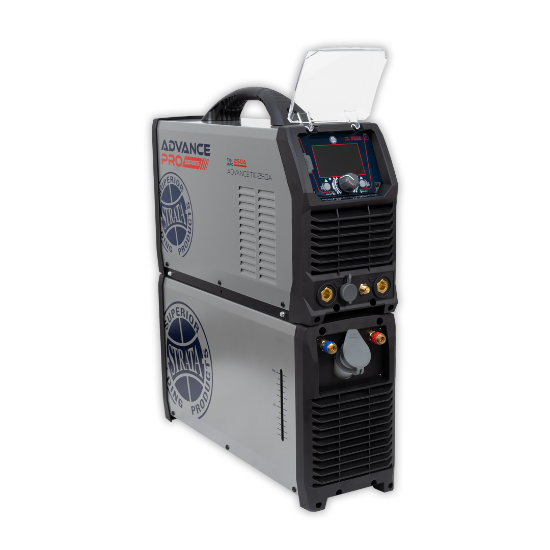

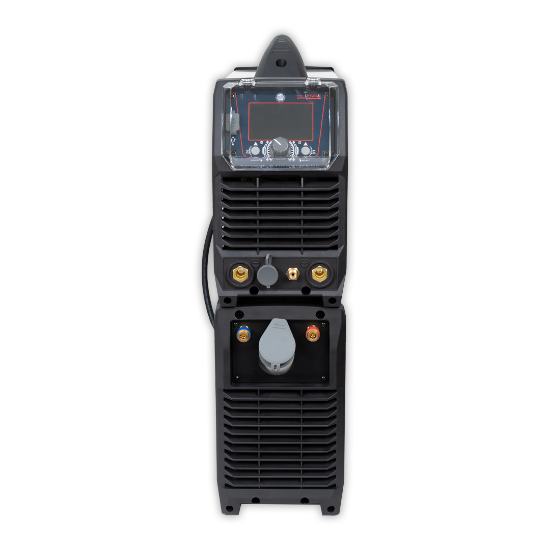

AdvanceTig250ACDC Water Cooled Pack

Advance your welding capabilities with the AdvanceTig250ACDC. This powerhouse delivers a 250A output with AC/DC pulse welding and innovative Synergic settings for effortless parameter adjustments. Whether you're working on industrial applications or intricate custom jobs, the full-color LCD screen and memory settings make it easy to achieve perfect results every time. With enhanced safety features and generator compatibility, it’s built for the toughest conditions.

Max Ouput (Tig/Arc) - 250A

Max Electrode Size - 4.0mm

Input Power Supply - 15A 230V

• Full Colour LCD Control Screen - Intuitive and clear visibility and setting of control parameters
• TIG Smart Set Synergic Mode - Easy setting of welding parameters according to material, thickness and joint type
• Active PFC Technology - Increased duty cycle and energy efficiency. Can be safely used with long extension lead
• 20 Memory Settings - Ability to quickly save and recall control settings for specific jobs
• AC Sine, Square, Triangle & Mixed AC Wave Options - Ultimate control for every AC tig welding application
• AC/DC Mix & Enhanced Fusion Feature - Faster AC TIG welding speeds
• Modular integrated water cooler - Ability to use water cooled torch in an easily portable, compact package, with torch low coolant sensor protection
• IGBT Inverter Technology - Smooth & stable welding output, increased reliability
• Digital Microprocessor Control System - Accurate and reliable setting of control parameters
• Dual Lift TIG and HF Start Modes - Versatility for welding around sensitive electronic equipment
• 2T, 4T & Bi-Level Trigger Control Modes - Ease of operator use for all job applications
• Dual Mode Remote Control Option - Digital up/ down button or potentiometer thumb wheel torch remote control options through a single connection plug (optional add on)
• Wired & Wireless Foot Pedal Control Option (foot control optional extra)
• Electronic HF Tig Arc Ignition System - Contamination free and easy arc starting with low EMF interference
• Spot Welding Mode - Special feature for welding very thin material without heat distortion
• Industrial IP23 casing with front panel protection - Resistant to damage, moisture and corrosion
• Lightweight & Compact Design - Ideal for portable site work applications
• MMA Adjustable Arc Force, Hot Start & Automatic Anti Stick Control - Greater control and ease of use for MMA welding.
• Generator Friendly - Designed to work with generator power supply and protect from power surges.
• Intelligent Machine Protection System - Temperature, voltage and current sensors for increased reliability & safety
• Smart cooling fan system - Reduces noise and intake of environmental contaminants into machine
• Production tested with 440V - Extreme stress testing in production for rugged reliability.
• Quick connect inlet gas fitting - Tool-less easy connection of gas supply to machine
