AdvanceMig255C Pack

36 MONTHS WARRANTY

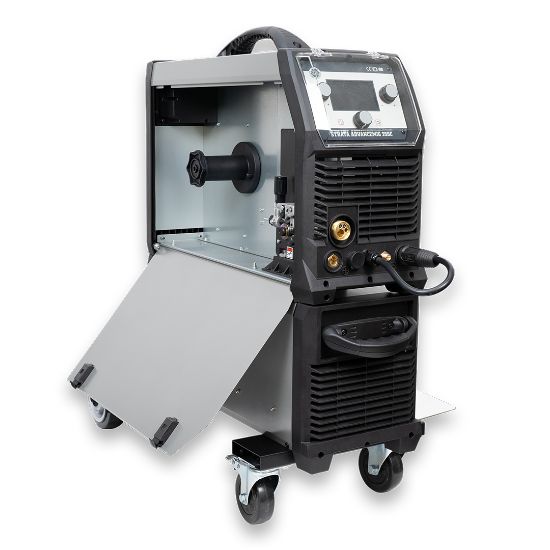

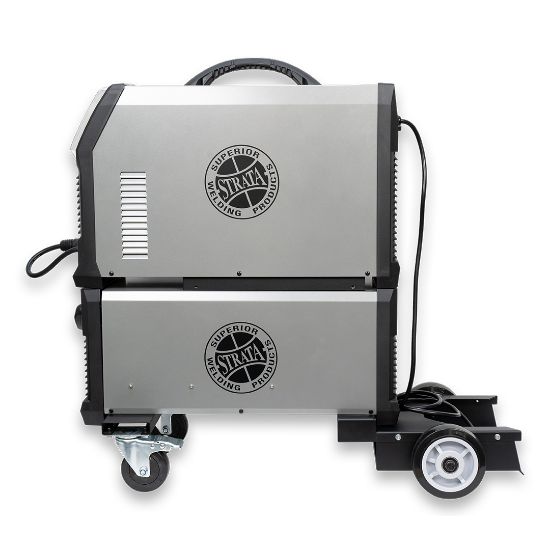

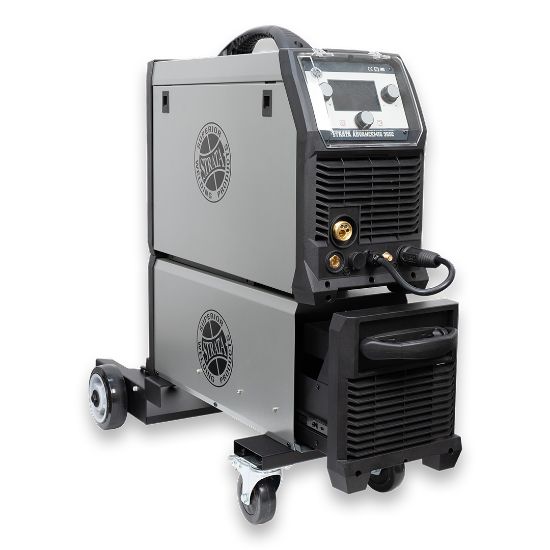

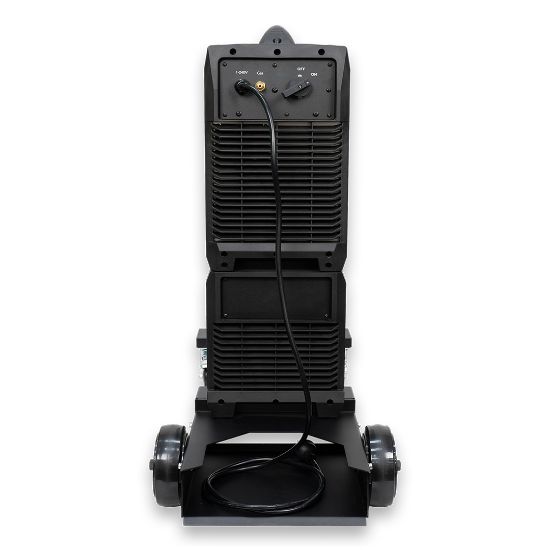

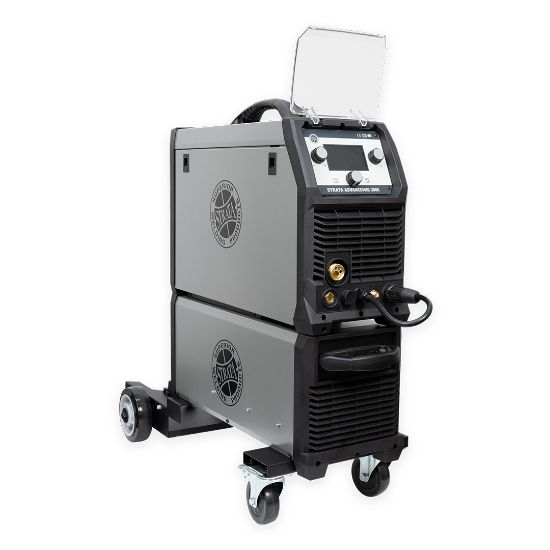

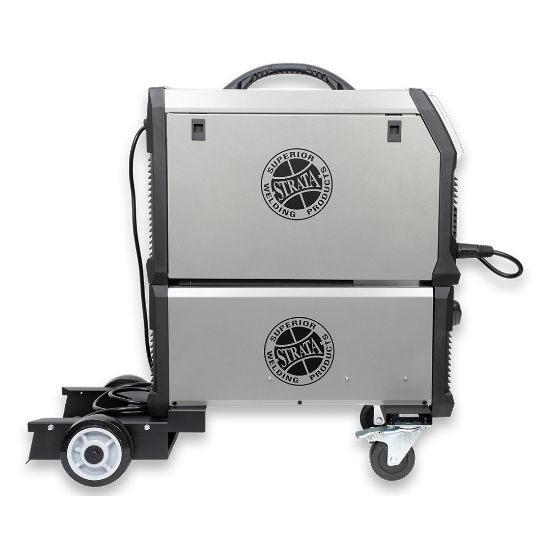

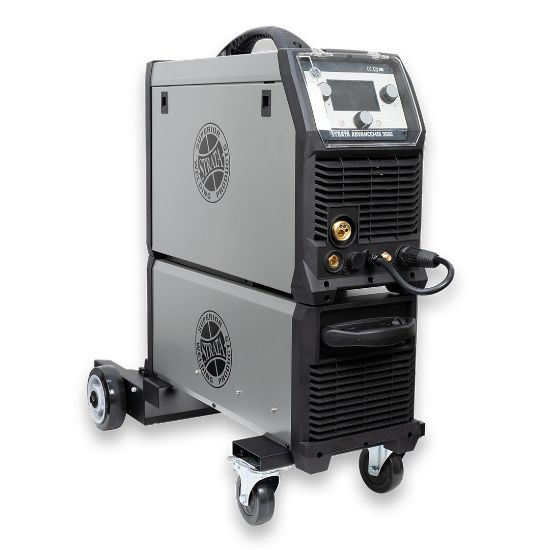

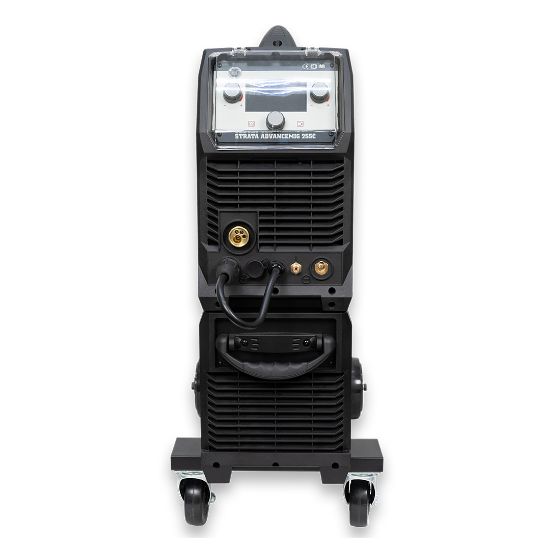

250A Compact PFC Inverter MIG/MMA/TIG Welder Trolley Package

With IGBT and PFC technology the ADVANCEMIG 255C is a multi-process welder suited to a range of jobs and a must have for any industrial professional. High quality over specified electronics, extreme stress testing up to 440V and IP23 protection mean this machine is built to withstand the harshest of environments found in the NZ workplace.

  • Digital microprocessor control system with superior & dynamic arc characteristics
  • Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads

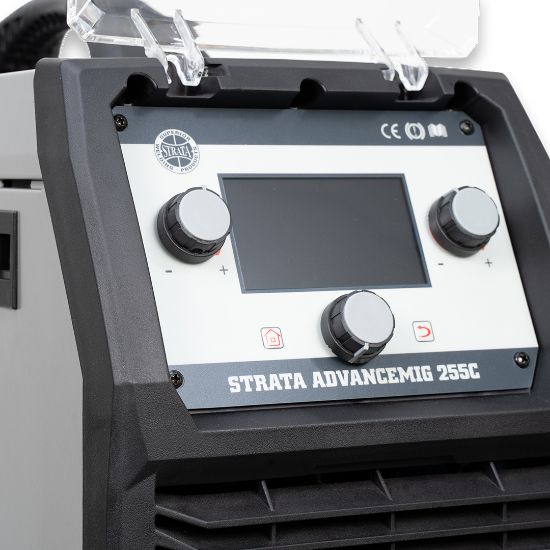

  • Smart full colour LCD display for a clear and intuitive display of all welding and setting parameters
  • Synergic MIG operation with parameter save/recall, an intuitive, simple setting of controls for consistent welding results
  • Lift TIG operation with down slope and remote current control ability (optional torch available)

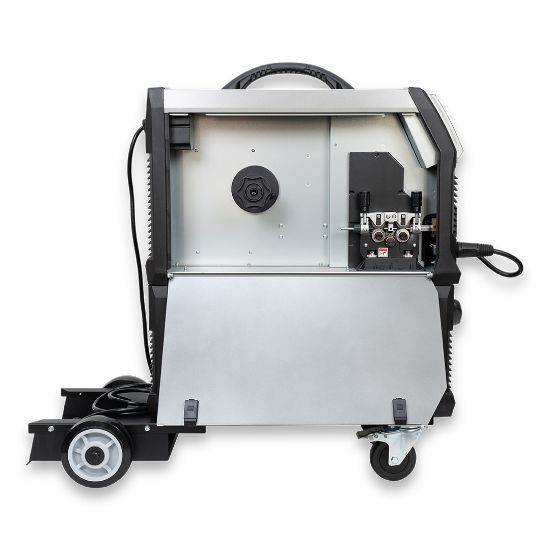

  • 4 Roll geared metal wire feeder unit provides a powerful and smooth wire feed
  • MIG waveform (inductance) gives good control of the arc for smooth welding results
  • Lightweight & compact design ideal for portable applications
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
  • Designed to work with generator power supply with protection from power surges.

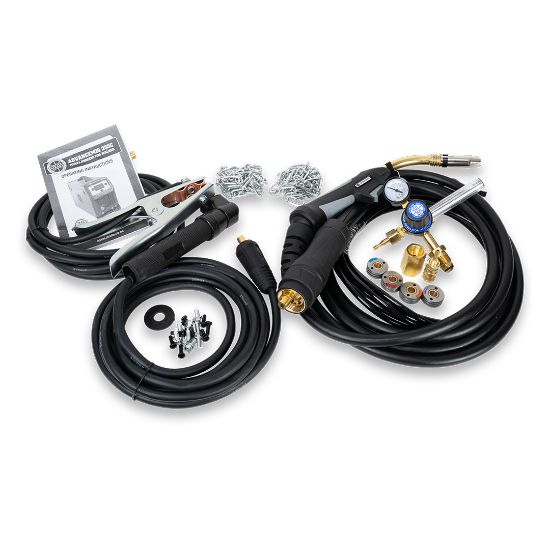

  • Accessories include 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, MT240-4ER MIG torch, 2 stage flowmeter, argon gas regulator and adapter, 4m gas hose, gas inlet quick connector, hose clamps and MIG drive rollers.

With IGBT and PFC technology the ADVANCEMIG 255C is a multi-process welder suited to a range of jobs and a must have for any industrial professional. High quality over specified electronics, extreme stress testing up to 440V and IP23 protection mean this machine is built to withstand the harshest of environments found in the NZ workplace.

  • Digital microprocessor control system with superior & dynamic arc characteristics
  • Multi voltage input - will operate with wide range of input voltage, can even be used with long extension leads
  • Smart full colour LCD display for a clear and intuitive display of all welding and setting parameters
  • Synergic MIG operation with parameter save/recall, an intuitive, simple setting of controls for consistent welding results
  • Lift TIG operation with down slope and remote current control ability (optional torch available)
  • 4 Roll geared metal wire feeder unit provides a powerful and smooth wire feed
  • MIG waveform (inductance) gives good control of the arc for smooth welding results
  • Lightweight & compact design ideal for portable applications
  • Intelligent protection system with temperature, voltage and current sensors for increased reliability & safety
  • Designed to work with generator power supply with protection from power surges.
  • Accessories include 3m earth lead with heavy duty earth clamp, 4m MMA lead with heavy duty twist lock electrode holder, MT240-4ER MIG torch, 2 stage flowmeter, argon gas regulator and adapter, 4m gas hose, gas inlet quick connector, hose clamps and MIG drive rollers.
Attribute nameAttribute value
strata
Dimensions680x230x445mm
Weight25kg
Input Power Supply230V AC 15A 50/60Hz
Input Power Tolerance90V-275V AC
Maximum Input Current41A
Generator Capacity10KVA
MMA/TIG Duty Cycle250A@13% 180A@60% 140A@100%
MIG Drive Rollers Available V Groove: 0.6/ 0.8/ 0.9/ 1.0mm Knurled: 0.8/ 0.9/ 1.0mm U Groove: 0.8/ 1.0mm
Mig Wire Spool SizeD200mm/D300mm 5kg/15kg
MMA O/C Voltage65V
StandardsEN60974-1:2012
MMA Rod Size1.6-5.0mm
Warranty36 months
Power Efficiency80%
Power Factor0.99
Mig Output Current25A - 250A
MIG Duty Cycle:250A@16%, 195A@60%, 150A@100%
MMA Current Output10A - 250A
Insulation ClassIP23
Mig Output Voltage10 - 30V
Wire Feeding Speed2.4 - 18m/min
