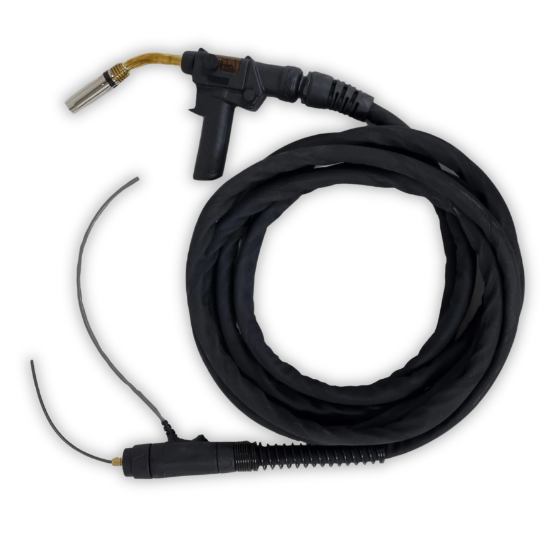

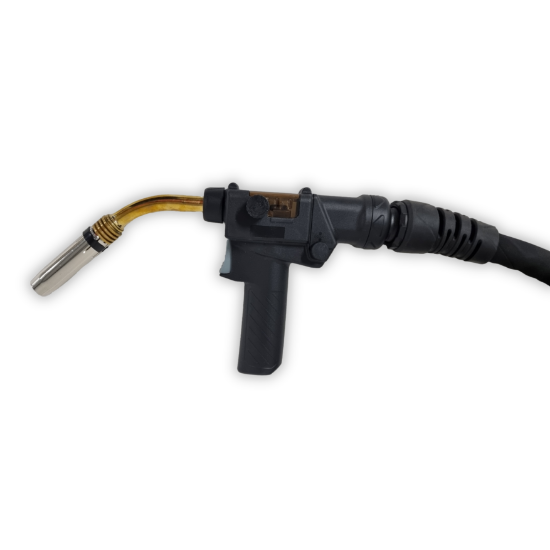

8m Air Cooled Push-Pull Gun

PP3645A-80ER-10K Strata 24V Air-Cooled Push-Pull Gun 8m with 45° Neck, 10K Wire Speed Control

Designed for professional welders, this product offers superior ergonomics and a rugged, lightweight construction for enhanced efficiency. The powerful 48V brushless wire feed motor ensures smooth, consistent wire feed over an 8m cable, built for thousands of hours of heavy-duty use at high duty cycles. Featuring a Euro connector and BZL 36 style front-end parts, along with an optional Push-Pull Synchroniser Kit (37630), it is compatible with most industrial MIG welding machines (installation by a qualified electrical technician required).

  • 24V push-pull gun
  • Air-cooled
  • Takes Binzel MB36 front end consumables
  • Standard with 45° Neck, 10K Wire Speed Control and 9-Pin Strata Plug
  • Use with Aluminium, Stainless or Steel Mig Wire 0.6mm – 1.2mm
  • Can suit any industrial Mig welder with the correct control plug retrofitted
Right Paddle

Features

Product Overview

Designed for professional welders, this product offers superior ergonomics and a rugged, lightweight construction for enhanced efficiency. The powerful 48V brushless wire feed motor ensures smooth, consistent wire feed over an 8m cable, built for thousands of hours of heavy-duty use at high duty cycles. Featuring a Euro connector and BZL 36 style front-end parts, along with an optional Push-Pull Synchroniser Kit (37630), it is compatible with most industrial MIG welding machines (installation by a qualified electrical technician required).

  • 24V push-pull gun
  • Air-cooled
  • Takes Binzel MB36 front end consumables
  • Standard with 45° Neck, 10K Wire Speed Control and 9-Pin Strata Plug
  • Use with Aluminium, Stainless or Steel Mig Wire 0.6mm – 1.2mm
  • Can suit any industrial Mig welder with the correct control plug retrofitted
See More

Overview

Technical Specifications

Attribute nameAttribute value
strata
Weight1.8kg
StandardsEN 60974-7
Push Pull Gun
ConnectionAdaptor
Length8m
Duty Cycle350A @ 80% Mixed Gas
Motor Voltage24V
Neck45 Degrees
Potentiometer Value10K
Wire Size0.6-1.2mm
See More
